ODI OSI piston seals

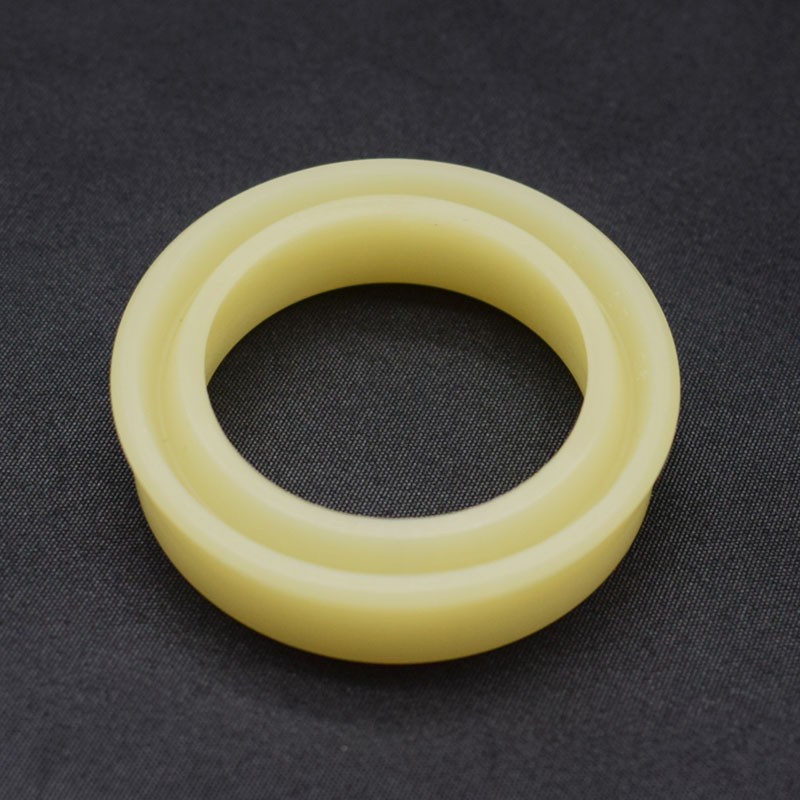

Hydraulic Piston Seals-ODI/OSI

Staed with the materials of high performance PU 93 Shore ASI are used very widely cylinders Having shorter outer sealing lip ODI / OSI nutrings are desinged especially for piston applications. Technical Data Pressure: ≤ 400 bar Temperature: -35  to +100℃ Speed:  ≤0.5m/s Media: Hydraulic oils (mineral oil-based) Material PU Hardness: 93+/2 Shore A Color: Light Yellow Advantages Unusually high abrasion resistance Low compression set Suitable for the most severe working conditions Easy installation

Standard sizes of ODI/OSI Piston Seals

ODI Piston Seals
Material: PU 93+/-2 ShoreA  Color:  Light Yellow
Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)
38×28×8	60×45×10	80×60×12	125×110×10	200×180×15
40×25×10	60×50×8	90×70×12	130×110×12	200×180×16
40×30×7	60×50×10	95×80×10	140×120×15	210×190×15
40×30×10	63×48×10	100×80×12	140×125×10	225×200×19
45×35×8	70×45×15	100×85×18	150×130×15	240×215×16
50×35×10	71×56×9	110×85×18	160×140×15	240×215×20
55×40×10	75×60×9	110×90×12	180×155×19	240×220×16
55×45×10	75×65×8	125×105×12	180×160×15	305×280×19
55×47×5.7	80×47×16	125×105×15	190×175×10
OSI Piston Seals
Material: PU 93+/-2 ShoreA  Color:  Light Yellow
Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)
28×20×5	50×40×6	71×61×6	85×75×6	125×112×9
33×25×5	55×45×6	73×63×6	90×80×6	225×205×12
56×45×7	60×50×6	75×65×6	100×85×9	230×210×12
40×30×6	63×53×6	80×60×12	105×90×9	280×255×16
45×35×6	70×60×6	80×70×6	115×100×9
