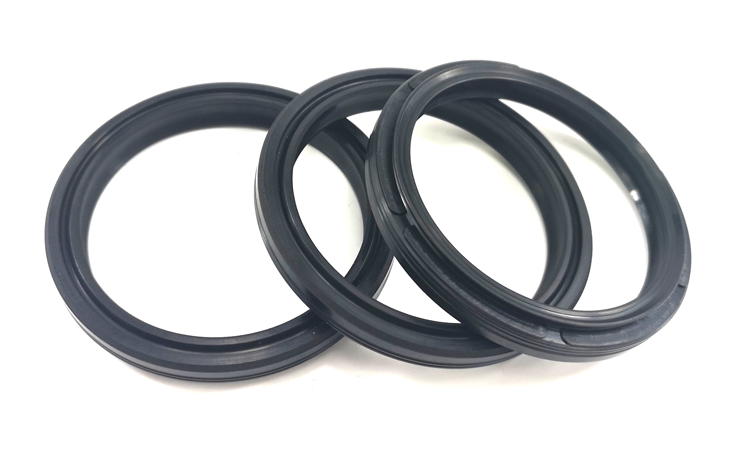

SCK Rubber rod wiper seals

Heavy equipment spare parts hydraulic cylinder rod wiper seals SCK Scraper

SCK Wiper

SCK (Rod Wiper)

SCK Wipers protect packings and cylinders by preventing the penetration of dust from the outside. Insertable dust seals with a large profile for both outdoor and indoor applications. They are specially designed not to penetrate water from the outer circuit of the groove.

Applications: Basic cylinders Low pressure air-hydraulic cylinders Operating Conditions: Working Temperature: -45°C to 100°C (-49°F to 212°F)

Standard sizes of SCK Scraper:

SCK-18   SCK-50   SCK-95

SCK-20   SCK-55   SCK-100

SCK-25   SCK-60  SCK-105

SCK-28   SCK-65   SCK-110

SCK-30   SCK-70   SCK-115

SCK-32   SCK-75   SCK-125

SCK-35   SCK-80   SCK-130
